Low-Temperature Sterilization for Heat-Sensitive Medical Instruments & Advanced Infection Control

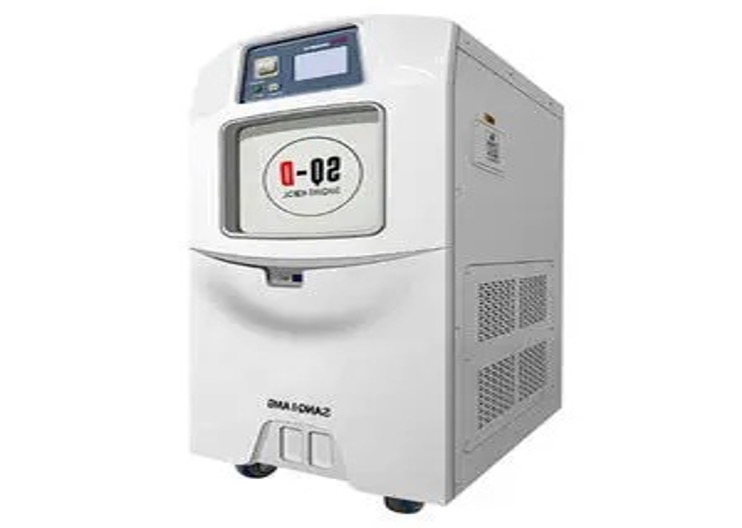

The SQ-D-100 H₂O₂ Low-Temperature Plasma Sterilizer (Ordinary Type) is a modern, fully automated sterilization system designed for safe and effective sterilization of heat-sensitive medical instruments using hydrogen peroxide gas plasma technology. It is widely used in hospitals, Central Sterile Supply Departments (CSSD), operating theatres, dental clinics, and laboratories across Accra, Ghana. This advanced system provides a reliable alternative to steam sterilization for delicate instruments that cannot withstand high temperatures, ensuring both material safety and complete microbial elimination.
Introduction
Many modern medical instruments such as endoscopes, laparoscopic tools, optical devices, and electronic surgical equipment are highly sensitive to heat and moisture. Traditional steam sterilization methods may damage these instruments or reduce their lifespan. The SQ-D-100 Plasma Sterilizer solves this challenge by using hydrogen peroxide (H₂O₂) gas combined with plasma technology under vacuum and low temperature conditions. This process generates highly reactive particles that destroy microorganisms at the molecular level while leaving no toxic residues behind. The result is a fast, safe, and environmentally friendly sterilization method suitable for advanced clinical environments.
Key Highlight
The SQ-D-100 H₂O₂ Plasma Sterilizer delivers low-temperature, vacuum based hydrogen peroxide plasma sterilization, making it ideal for sterilizing heat and moisture sensitive medical instruments without damaging delicate components.
Usage in Hospital Settings
The SQ-D-100 is commonly used in Central Sterile Supply Departments (CSSD), Operating theatres and surgical units, Endoscopy and minimally invasive surgery departments, Dental and ophthalmology clinics and Diagnostic and research laboratories. It is especially suitable for sterilizing rigid endoscopes, laparoscopic instruments, optical lenses, catheters, fiber optic cables, electronic surgical devices, and plastic or polymer-based medical tools. The sterilization process operates under vacuum conditions, allowing hydrogen peroxide vapour to penetrate complex instrument surfaces and internal channels. After exposure, the plasma phase breaks down residual hydrogen peroxide into harmless water vapour and oxygen, ensuring safe handling immediately after the cycle.
Key Specifications
- The ZJ-SHA-C utilizes a reciprocating oscillation mechanism combined with a thermostatically controlled water bath for precision laboratory applications.
- The SQ-D-100 is a low-temperature hydrogen peroxide gas plasma sterilizerdesigned for heat-sensitive medical devices.
- Chamber volume is approximately 100–108 liters, suitable for medium to large hospital workloads.
- Operating temperature maintained at approximately 45°C to 55°C, ensuring safe processing of delicate instruments.
- Uses 60% hydrogen peroxide solution (H₂O₂) as the primary sterilizing agent.
- Vacuum system operates up to approximately -60 kPa for deep gas penetration into instruments.
- Fully automated microprocessor control system with touch-screen interface for easy operation.
- Multiple sterilization cycles available (short and standard cycles typically ranging 35–55 minutes) for different instrument loads.
- Equipped with automatic door locking system for operator safety during operation.
- Integrated plasma generation system using high-frequency electric fields for sterilization activation.
- Built-in humidity, pressure, and temperature sensors for real-time process monitoring.
- Automatic aeration system breaks down residual hydrogen peroxide into safe by-products (water and oxygen).
- Internal chamber constructed with medical-grade stainless steel for durability and corrosion resistance.
- Data storage system supports sterilization cycle tracking and traceability.
- Optional thermal printer or USB output for sterilization record documentation.
Clinical Benefits
- Enables safe sterilization of heat-sensitive and moisture-sensitive instruments
- Protects delicate medical equipment from heat damage
- Provides deep penetration sterilization for complex and hollow instruments
- Supports infection prevention and control (IPC) standards in hospitals
- Reduces risk of healthcare-associated infections (HAIs)
- Short sterilization cycles improve workflow efficiency in CSSD and operating theatres
- Environmentally friendly sterilization process with non-toxic by-products (water and oxygen)
- Enhances instrument lifespan by avoiding high-temperature exposure
- Fully automated operation reduces human error and operator workload
- Ensures safe handling through automatic aeration and residual gas removal
- Improves sterilization reliability for advanced surgical procedures
- Supports compliance with modern hospital sterilization protocols
Ideal For
- Central Sterile Supply Departments (CSSD)
- Hospitals and surgical centers
- Operating theatres
- Endoscopy units
- Dental and ophthalmology clinics
- Diagnostic laboratories
- Research and medical device processing facilities
